Schema Envelope-1.0.0.xsd


attribute form default:  unqualified
element form default:  qualified

Elements

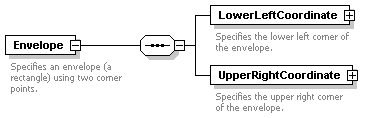

Envelope


element Envelope
diagram
children LowerLeftCoordinate UpperRightCoordinate
source
<xs:element name="Envelope">
  <xs:annotation>
    <xs:documentation>Specifies an envelope (a rectangle) using two corner points.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="LowerLeftCoordinate">
        <xs:annotation>
          <xs:documentation>Specifies the lower left corner of the envelope.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="X" type="xs:string"/>
            <xs:element name="Y" type="xs:string"/>
            <xs:element name="Z" type="xs:string" minOccurs="0"/>
            <xs:element name="M" type="xs:string" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="UpperRightCoordinate">
        <xs:annotation>
          <xs:documentation>Specifies the upper right corner of the envelope.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="X" type="xs:string"/>
            <xs:element name="Y" type="xs:string"/>
            <xs:element name="Z" type="xs:string" minOccurs="0"/>
            <xs:element name="M" type="xs:string" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

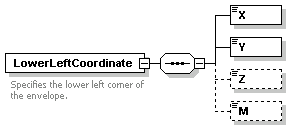

element Envelope/LowerLeftCoordinate
diagram
children X Y Z M
source
<xs:element name="LowerLeftCoordinate">
  <xs:annotation>
    <xs:documentation>Specifies the lower left corner of the envelope.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="X" type="xs:string"/>
      <xs:element name="Y" type="xs:string"/>
      <xs:element name="Z" type="xs:string" minOccurs="0"/>
      <xs:element name="M" type="xs:string" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element Envelope/LowerLeftCoordinate/X
diagram
type xs:string
source
<xs:element name="X" type="xs:string"/>

element Envelope/LowerLeftCoordinate/Y
diagram
type xs:string
source
<xs:element name="Y" type="xs:string"/>

element Envelope/LowerLeftCoordinate/Z
diagram
type xs:string
source
<xs:element name="Z" type="xs:string" minOccurs="0"/>

element Envelope/LowerLeftCoordinate/M
diagram
type xs:string
source
<xs:element name="M" type="xs:string" minOccurs="0"/>

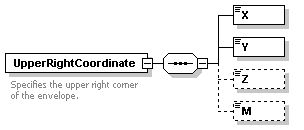

element Envelope/UpperRightCoordinate
diagram
children X Y Z M
source
<xs:element name="UpperRightCoordinate">
  <xs:annotation>
    <xs:documentation>Specifies the upper right corner of the envelope.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="X" type="xs:string"/>
      <xs:element name="Y" type="xs:string"/>
      <xs:element name="Z" type="xs:string" minOccurs="0"/>
      <xs:element name="M" type="xs:string" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element Envelope/UpperRightCoordinate/X
diagram
type xs:string
source
<xs:element name="X" type="xs:string"/>

element Envelope/UpperRightCoordinate/Y
diagram
type xs:string
source
<xs:element name="Y" type="xs:string"/>

element Envelope/UpperRightCoordinate/Z
diagram
type xs:string
source
<xs:element name="Z" type="xs:string" minOccurs="0"/>

element Envelope/UpperRightCoordinate/M
diagram
type xs:string
source
<xs:element name="M" type="xs:string" minOccurs="0"/>
