Schema FdoLongTransactionList-1.0.0.xsd


attribute form default:  unqualified
element form default:  qualified

Elements  Complex types
FdoLongTransactionList  FdoLongTransactionList

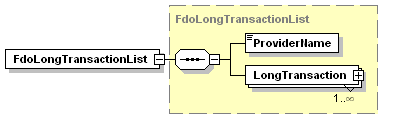

element FdoLongTransactionList
diagram
type FdoLongTransactionList
properties
content complex
children ProviderName LongTransaction
source
<xs:element name="FdoLongTransactionList" type="FdoLongTransactionList"/>

complexType FdoLongTransactionList
diagram
children ProviderName LongTransaction
used by
element FdoLongTransactionList
source
<xs:complexType name="FdoLongTransactionList">
  <xs:sequence>
    <xs:element name="ProviderName" type="xs:string"/>
    <xs:element name="LongTransaction" maxOccurs="unbounded">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="Name" type="xs:string"/>
          <xs:element name="Description" type="xs:string"/>
          <xs:element name="Owner" type="xs:string"/>
          <xs:element name="CreationDate" type="xs:string"/>
        </xs:sequence>
        <xs:attribute name="IsActive" type="xs:boolean" use="required"/>
        <xs:attribute name="IsFrozen" type="xs:boolean" use="required"/>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element FdoLongTransactionList/ProviderName
diagram
type xs:string
properties
isRef 0
content simple
source
<xs:element name="ProviderName" type="xs:string"/>

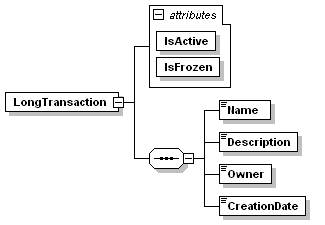

element FdoLongTransactionList/LongTransaction
diagram
properties
isRef 0
content complex
children Name Description Owner CreationDate
attributes
Name  Type  Use  Default  Fixed  Annotation
IsActive  xs:booleanrequired
IsFrozen  xs:booleanrequired
source
<xs:element name="LongTransaction" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="Name" type="xs:string"/>
      <xs:element name="Description" type="xs:string"/>
      <xs:element name="Owner" type="xs:string"/>
      <xs:element name="CreationDate" type="xs:string"/>
    </xs:sequence>
    <xs:attribute name="IsActive" type="xs:boolean" use="required"/>
    <xs:attribute name="IsFrozen" type="xs:boolean" use="required"/>
  </xs:complexType>
</xs:element>

element FdoLongTransactionList/LongTransaction/Name
diagram
type xs:string
properties
isRef 0
content simple
source
<xs:element name="Name" type="xs:string"/>

element FdoLongTransactionList/LongTransaction/Description
diagram
type xs:string
properties
isRef 0
content simple
source
<xs:element name="Description" type="xs:string"/>

element FdoLongTransactionList/LongTransaction/Owner
diagram
type xs:string
properties
isRef 0
content simple
source
<xs:element name="Owner" type="xs:string"/>

element FdoLongTransactionList/LongTransaction/CreationDate
diagram
type xs:string
properties
isRef 0
content simple
source
<xs:element name="CreationDate" type="xs:string"/>
