Schema FeatureSource-1.0.0.xsd

attribute form default:	unqualified
element form default:	qualified

Elements	Complex types	Simple types
FeatureSource	AttributeRelateType	RelateTypeEnum
	CalculatedPropertyType
	FeatureSourceType
	NameValuePairType
	RelatePropertyType
	SpatialContextType

attribute form default:	unqualified
element form default:	qualified

Complex types

ExtendedDataType

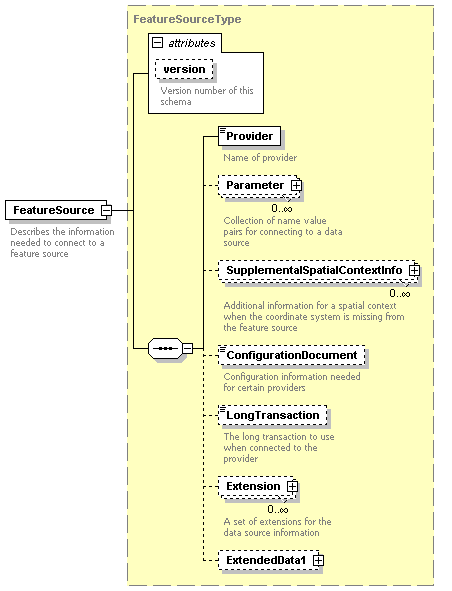

element FeatureSource

Provider Parameter SupplementalSpatialContextInfo ConfigurationDocument LongTransaction Extension ExtendedData1

attributes

Name	Type	Use	Default	Fixed
version	xs:string

source

<xs:element name="FeatureSource" type="FeatureSourceType">
  <xs:annotation>
    <xs:documentation>Describes the information needed to connect to a feature source</xs:documentation>
  </xs:annotation>
</xs:element>

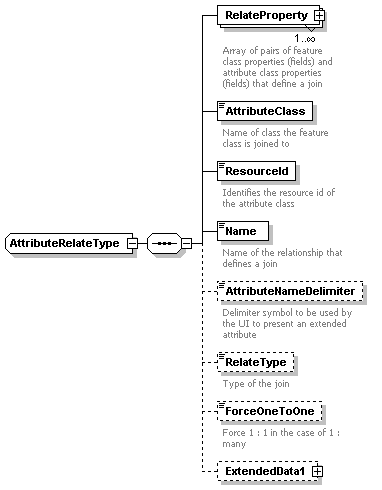

complexType AttributeRelateType

diagram

children

RelateProperty AttributeClass ResourceId Name AttributeNameDelimiter RelateType ForceOneToOne ExtendedData1

used by

element

FeatureSourceType/Extension/AttributeRelate

source

<xs:complexType name="AttributeRelateType">
  <xs:sequence>
    <xs:element name="RelateProperty" type="RelatePropertyType" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Array of pairs of feature class properties (fields) and attribute class properties (fields) that define a join</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="AttributeClass" type="xs:string">
      <xs:annotation>
        <xs:documentation>Name of class the feature class is joined to</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ResourceId" type="xs:string">
      <xs:annotation>
        <xs:documentation>Identifies the resource id of the attribute class</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Name" type="xs:string">
      <xs:annotation>
        <xs:documentation>Name of the relationship that defines a join</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="AttributeNameDelimiter" type="xs:string" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Delimiter symbol to be used by the UI to present an extended attribute</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="RelateType" type="RelateTypeEnum" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Type of the join</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ForceOneToOne" type="xs:boolean" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Force 1 : 1 in the case of 1 : many </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ExtendedData1" type="ExtendedDataType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element AttributeRelateType/RelateProperty

diagram
type	RelatePropertyType
children	FeatureClassProperty AttributeClassProperty ExtendedData1
source	<xs:element name="RelateProperty" type="RelatePropertyType" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>Array of pairs of feature class properties (fields) and attribute class properties (fields) that define a join</xs:documentation> </xs:annotation> </xs:element>

element AttributeRelateType/AttributeClass

diagram
type	xs:string
source	<xs:element name="AttributeClass" type="xs:string"> <xs:annotation> <xs:documentation>Name of class the feature class is joined to</xs:documentation> </xs:annotation> </xs:element>

element AttributeRelateType/ResourceId

diagram
type	xs:string
source	<xs:element name="ResourceId" type="xs:string"> <xs:annotation> <xs:documentation>Identifies the resource id of the attribute class</xs:documentation> </xs:annotation> </xs:element>

element AttributeRelateType/Name

diagram
type	xs:string
source	<xs:element name="Name" type="xs:string"> <xs:annotation> <xs:documentation>Name of the relationship that defines a join</xs:documentation> </xs:annotation> </xs:element>

element AttributeRelateType/AttributeNameDelimiter

<xs:element name="AttributeNameDelimiter" type="xs:string" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Delimiter symbol to be used by the UI to present an extended attribute</xs:documentation>
  </xs:annotation>
</xs:element>

element AttributeRelateType/RelateType

enumeration	LeftOuter
enumeration	RightOuter
enumeration	Inner
enumeration	Association

source

<xs:element name="RelateType" type="RelateTypeEnum" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Type of the join</xs:documentation>
  </xs:annotation>
</xs:element>

element AttributeRelateType/ForceOneToOne

diagram
type	xs:boolean
source	<xs:element name="ForceOneToOne" type="xs:boolean" minOccurs="0"> <xs:annotation> <xs:documentation>Force 1 : 1 in the case of 1 : many </xs:documentation> </xs:annotation> </xs:element>

element AttributeRelateType/ExtendedData1

diagram
type	ExtendedDataType
source	<xs:element name="ExtendedData1" type="ExtendedDataType" minOccurs="0"/>

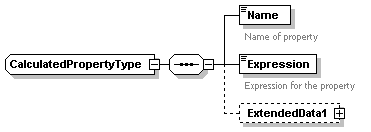

complexType CalculatedPropertyType

diagram

children

Name Expression ExtendedData1

used by

element

FeatureSourceType/Extension/CalculatedProperty

source

<xs:complexType name="CalculatedPropertyType">
  <xs:sequence>
    <xs:element name="Name" type="xs:string">
      <xs:annotation>
        <xs:documentation>Name of property</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Expression" type="xs:string">
      <xs:annotation>
        <xs:documentation>Expression for the property</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ExtendedData1" type="ExtendedDataType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element CalculatedPropertyType/Name

diagram
type	xs:string
source	<xs:element name="Name" type="xs:string"> <xs:annotation> <xs:documentation>Name of property</xs:documentation> </xs:annotation> </xs:element>

element CalculatedPropertyType/Expression

diagram
type	xs:string
source	<xs:element name="Expression" type="xs:string"> <xs:annotation> <xs:documentation>Expression for the property</xs:documentation> </xs:annotation> </xs:element>

element CalculatedPropertyType/ExtendedData1

diagram
type	ExtendedDataType
source	<xs:element name="ExtendedData1" type="ExtendedDataType" minOccurs="0"/>

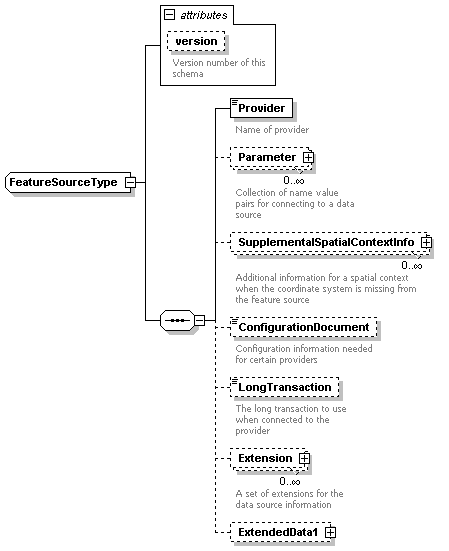

complexType FeatureSourceType

diagram

children

Provider Parameter SupplementalSpatialContextInfo ConfigurationDocument LongTransaction Extension ExtendedData1

Name	Type	Use	Default	Fixed
version	xs:string

source

<xs:complexType name="FeatureSourceType">
  <xs:sequence>
    <xs:element name="Provider" type="xs:string">
      <xs:annotation>
        <xs:documentation>Name of provider</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Parameter" type="NameValuePairType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Collection of name value pairs for connecting to a data source</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="SupplementalSpatialContextInfo" type="SpatialContextType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Additional information for a spatial context when the coordinate system is missing from the feature source</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ConfigurationDocument" type="xs:string" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Configuration information needed for certain providers</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="LongTransaction" type="xs:string" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The long transaction to use when connected to the provider</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Extension" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>A set of extensions for the data source information</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="CalculatedProperty" type="CalculatedPropertyType" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
              <xs:documentation>Zero or more calculated properties from attributes from the same feature class</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="AttributeRelate" type="AttributeRelateType" minOccurs="0" maxOccurs="unbounded"/>
          <xs:element name="Name" type="xs:string">
            <xs:annotation>
              <xs:documentation>Name of the extension</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="FeatureClass" type="xs:string">
            <xs:annotation>
              <xs:documentation>The feature class that is being extended; this is the class whose attributes are used for joining other attribute classes</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="ExtendedData1" type="ExtendedDataType" minOccurs="0"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="ExtendedData1" type="ExtendedDataType" minOccurs="0"/>
  </xs:sequence>
  <xs:attribute name="version" type="xs:string">
    <xs:annotation>
      <xs:documentation>Version number of this schema</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>

element FeatureSourceType/Provider

diagram
type	xs:string
source	<xs:element name="Provider" type="xs:string"> <xs:annotation> <xs:documentation>Name of provider</xs:documentation> </xs:annotation> </xs:element>

element FeatureSourceType/Parameter

diagram
type	NameValuePairType
children	Name Value ExtendedData1
source	<xs:element name="Parameter" type="NameValuePairType" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>Collection of name value pairs for connecting to a data source</xs:documentation> </xs:annotation> </xs:element>

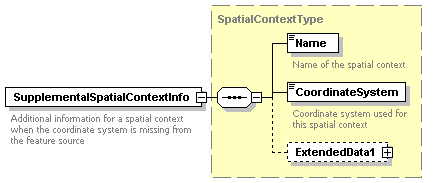

element FeatureSourceType/SupplementalSpatialContextInfo

diagram
type	SpatialContextType
children	Name CoordinateSystem ExtendedData1
source	<xs:element name="SupplementalSpatialContextInfo" type="SpatialContextType" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>Additional information for a spatial context when the coordinate system is missing from the feature source</xs:documentation> </xs:annotation> </xs:element>

element FeatureSourceType/ConfigurationDocument

<xs:element name="ConfigurationDocument" type="xs:string" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Configuration information needed for certain providers</xs:documentation>
  </xs:annotation>
</xs:element>

element FeatureSourceType/LongTransaction

<xs:element name="LongTransaction" type="xs:string" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The long transaction to use when connected to the provider</xs:documentation>
  </xs:annotation>
</xs:element>

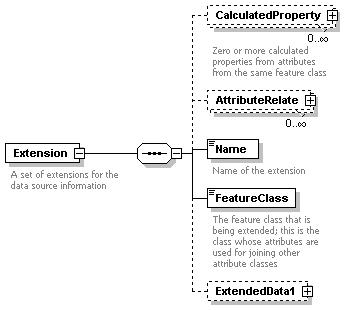

element FeatureSourceType/Extension

diagram

children

CalculatedProperty AttributeRelate Name FeatureClass ExtendedData1

source

<xs:element name="Extension" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>A set of extensions for the data source information</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="CalculatedProperty" type="CalculatedPropertyType" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Zero or more calculated properties from attributes from the same feature class</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="AttributeRelate" type="AttributeRelateType" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="Name" type="xs:string">
        <xs:annotation>
          <xs:documentation>Name of the extension</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="FeatureClass" type="xs:string">
        <xs:annotation>
          <xs:documentation>The feature class that is being extended; this is the class whose attributes are used for joining other attribute classes</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="ExtendedData1" type="ExtendedDataType" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element FeatureSourceType/Extension/CalculatedProperty

diagram
type	CalculatedPropertyType
children	Name Expression ExtendedData1
source	<xs:element name="CalculatedProperty" type="CalculatedPropertyType" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>Zero or more calculated properties from attributes from the same feature class</xs:documentation> </xs:annotation> </xs:element>

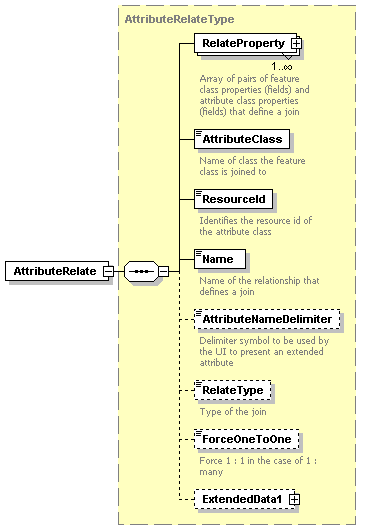

element FeatureSourceType/Extension/AttributeRelate

diagram
type	AttributeRelateType
children	RelateProperty AttributeClass ResourceId Name AttributeNameDelimiter RelateType ForceOneToOne ExtendedData1
source	<xs:element name="AttributeRelate" type="AttributeRelateType" minOccurs="0" maxOccurs="unbounded"/>

element FeatureSourceType/Extension/Name

diagram
type	xs:string
source	<xs:element name="Name" type="xs:string"> <xs:annotation> <xs:documentation>Name of the extension</xs:documentation> </xs:annotation> </xs:element>

element FeatureSourceType/Extension/FeatureClass

<xs:element name="FeatureClass" type="xs:string">
  <xs:annotation>
    <xs:documentation>The feature class that is being extended; this is the class whose attributes are used for joining other attribute classes</xs:documentation>
  </xs:annotation>
</xs:element>

element FeatureSourceType/Extension/ExtendedData1

diagram
type	ExtendedDataType
source	<xs:element name="ExtendedData1" type="ExtendedDataType" minOccurs="0"/>

element FeatureSourceType/ExtendedData1

diagram
type	ExtendedDataType
source	<xs:element name="ExtendedData1" type="ExtendedDataType" minOccurs="0"/>

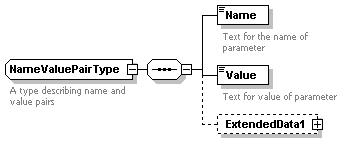

complexType NameValuePairType

diagram

children

Name Value ExtendedData1

used by

element

FeatureSourceType/Parameter

source

<xs:complexType name="NameValuePairType">
  <xs:annotation>
    <xs:documentation>A type describing name and value pairs</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="Name" type="xs:string">
      <xs:annotation>
        <xs:documentation>Text for the name of parameter</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Value" type="xs:string">
      <xs:annotation>
        <xs:documentation>Text for value of parameter</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ExtendedData1" type="ExtendedDataType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element NameValuePairType/Name

diagram
type	xs:string
source	<xs:element name="Name" type="xs:string"> <xs:annotation> <xs:documentation>Text for the name of parameter</xs:documentation> </xs:annotation> </xs:element>

element NameValuePairType/Value

diagram
type	xs:string
source	<xs:element name="Value" type="xs:string"> <xs:annotation> <xs:documentation>Text for value of parameter</xs:documentation> </xs:annotation> </xs:element>

element NameValuePairType/ExtendedData1

diagram
type	ExtendedDataType
source	<xs:element name="ExtendedData1" type="ExtendedDataType" minOccurs="0"/>

complexType RelatePropertyType

diagram

children

FeatureClassProperty AttributeClassProperty ExtendedData1

used by

element

AttributeRelateType/RelateProperty

source

<xs:complexType name="RelatePropertyType">
  <xs:sequence>
    <xs:element name="FeatureClassProperty" type="xs:string">
      <xs:annotation>
        <xs:documentation>Name of property (field) in feature class </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="AttributeClassProperty" type="xs:string">
      <xs:annotation>
        <xs:documentation>Name of property (field) in attribute class</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ExtendedData1" type="ExtendedDataType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element RelatePropertyType/FeatureClassProperty

diagram
type	xs:string
source	<xs:element name="FeatureClassProperty" type="xs:string"> <xs:annotation> <xs:documentation>Name of property (field) in feature class </xs:documentation> </xs:annotation> </xs:element>

element RelatePropertyType/AttributeClassProperty

diagram
type	xs:string
source	<xs:element name="AttributeClassProperty" type="xs:string"> <xs:annotation> <xs:documentation>Name of property (field) in attribute class</xs:documentation> </xs:annotation> </xs:element>

element RelatePropertyType/ExtendedData1

diagram
type	ExtendedDataType
source	<xs:element name="ExtendedData1" type="ExtendedDataType" minOccurs="0"/>

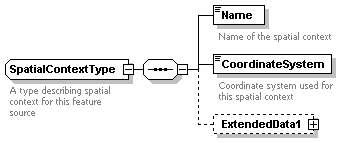

complexType SpatialContextType

diagram

children

Name CoordinateSystem ExtendedData1

used by

element

FeatureSourceType/SupplementalSpatialContextInfo

source

<xs:complexType name="SpatialContextType">
  <xs:annotation>
    <xs:documentation>A type describing spatial context for this feature source</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="Name" type="xs:string">
      <xs:annotation>
        <xs:documentation>Name of the spatial context</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CoordinateSystem" type="xs:string">
      <xs:annotation>
        <xs:documentation>Coordinate system used for this spatial context</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ExtendedData1" type="ExtendedDataType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element SpatialContextType/Name

diagram
type	xs:string
source	<xs:element name="Name" type="xs:string"> <xs:annotation> <xs:documentation>Name of the spatial context</xs:documentation> </xs:annotation> </xs:element>

element SpatialContextType/CoordinateSystem

diagram
type	xs:string
source	<xs:element name="CoordinateSystem" type="xs:string"> <xs:annotation> <xs:documentation>Coordinate system used for this spatial context</xs:documentation> </xs:annotation> </xs:element>

element SpatialContextType/ExtendedData1

diagram
type	ExtendedDataType
source	<xs:element name="ExtendedData1" type="ExtendedDataType" minOccurs="0"/>

simpleType RelateTypeEnum

type

restriction of xs:string

used by

element

AttributeRelateType/RelateType

facets

enumeration	LeftOuter
enumeration	RightOuter
enumeration	Inner
enumeration	Association

source

<xs:simpleType name="RelateTypeEnum">
  <xs:annotation>
    <xs:documentation>Enum for join types</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="LeftOuter"/>
    <xs:enumeration value="RightOuter"/>
    <xs:enumeration value="Inner"/>
    <xs:enumeration value="Association"/>
  </xs:restriction>
</xs:simpleType>

complexType ExtendedDataType

diagram

used by

elements

FeatureSourceType/Extension/ExtendedData1 FeatureSourceType/ExtendedData1 NameValuePairType/ExtendedData1 CalculatedPropertyType/ExtendedData1 RelatePropertyType/ExtendedData1 AttributeRelateType/ExtendedData1 SpatialContextType/ExtendedData1

source

<xs:complexType name="ExtendedDataType">
  <xs:annotation>
    <xs:documentation>A type allocating space for future, additional, and validatable data.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:any processContents="lax" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
